In critical piping systems—whether in oil refineries, chemical plants, or power generation—the integrity of every connection is paramount. Butt weld pipe elbows are the gold standard for creating permanent, leak-proof, and high-pressure resistant changes in fluid direction.
At Rayoung, our butt weld fittings is engineered to meet and exceed the most rigorous international standards, including ASME B16.9 and ASTM A234.

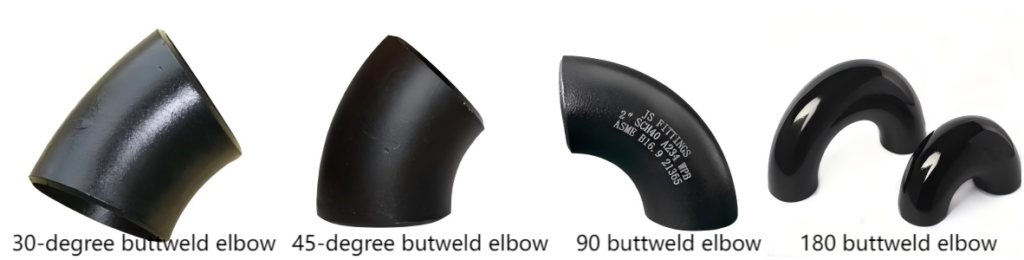

What Makes a Butt Weld Elbow Superior?
Unlike threaded or socket weld fittings, a butt weld elbow is welded directly to the pipe. This design offers several key advantages for industrial infrastructure:
- Leak-Proof Integrity: Provides a continuous metal structure between pipe and fitting, reducing the risk of leaks in high-vibration environments.
- Strength for High Pressure: Ideal for systems that operate under extreme pressure and temperature cycles.
- Smooth Flow: The internal surface is flush, minimizing turbulence and preventing erosion-corrosion at the joints.
Technical Specifications & Materials
To ensure the longevity of your piping project, selecting the correct material grade is essential. We provide a full range of options:
1. Carbon Steel Elbows

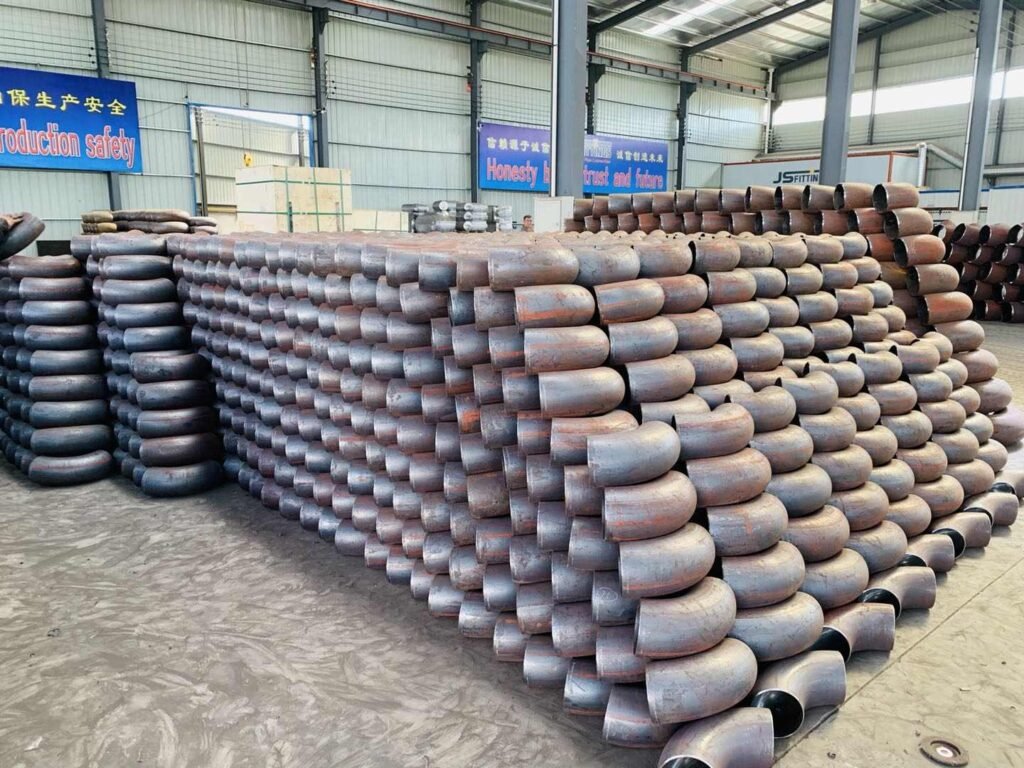

The industry workhorse. Our ASTM A234 WPB elbows are perfect for medium to high-temperature service. For low-temperature applications, we offer ASTM A420 WPL6.
2. Stainless Steel Elbows
For superior corrosion resistance in food processing or marine environments. Available in:
- ASTM A403 WP304/304L
- ASTM A403 WP316/316L (High acid/alkali resistance)
3. Alloy & Duplex Steel
For specialized engineering needs involving extreme heat or highly corrosive slurries, including ASTM A234 WP11, WP22, WP91 and Duplex 2205.
Seamless vs. Welded Butt Weld Elbows: Which One Do You Need?
A common question during the procurement process is whether to choose seamless or welded (ERW/EFW) elbows.
| Feature | Seamless Butt Weld Elbow | Welded Pipe Elbow |
| Manufacturing | Made from seamless pipe via mandrel or cold forming. | Fabricated from steel plates or welded pipes. |
| Size Range | Typically available up to 24 inches. | Available in large diameters (up to 72 inches or more). |
| Reliability | No weld seam; higher safety factor for critical high-pressure apps. | Cost-effective for low-pressure, large-diameter lines. |
| Standard | ASME B16.9 / MSS-SP-43 | ASME B16.9 |
Our Manufacturing Process: Precision at Every Step
Our “Excellence” isn’t just a marketing term—it’s rooted in our production line. Every Rayoung Steel elbow undergoes a strictly controlled process:
- Mandrel Forming (Hot Pushing): We use advanced mandrel technology to ensure uniform wall thickness and precise curvature radius.
- Heat Treatment: All fittings undergo normalizing or solution treatment to restore the metal’s grain structure and relieve internal stress.
- Surface Finishing: Shot blasting and rust-preventative oil coating (black paint or galvanizing) ensure your fittings arrive in perfect condition.
Why Source Butt Weld Fittings from Rayoung?
When you choose Rayoung/JS FITTINGS, you are partnering with a manufacturer that understands the stakes of industrial piping.
- Full Traceability: Every elbow comes with an EN 10204 3.1 Mill Test Certificate (MTC).
- Dimensional Accuracy: We adhere strictly to ASME B16.9 dimensions and tolerances.
- Global Logistics: Fast shipping options for both small-batch specialized alloys and bulk carbon steel orders.
Frequently Asked Questions (FAQ)
Q1: What is the difference between Sch 40 and Sch 80 elbows?
A: “Schedule” refers to the wall thickness. Sch 80 elbows have thicker walls than Sch 40, allowing them to handle higher internal pressures. It is vital to match the schedule of the elbow to the schedule of the pipe it will be welded to.
Q2: Can you provide customized bend radii for butt weld elbows?
A: Yes. While 1.5D (Long Radius) and 1.0D (Short Radius) are the standards, we can manufacture custom radii (3D, 5D, etc.) for specific flow requirements or erosion control.
Q3: How do you ensure the quality of the weld end?
A: All our butt weld elbows feature a factory-machined bevel end (usually 37.5° as per ASME B16.25) to allow for easy and high-quality welding on-site.
Request a Technical Quote Today
Need a butt weld elbow weight chart or a price list for your next project? Our technical sales team is ready to provide you with the data you need to keep your project on schedule and under budget.
