Carbon Steel Buttweld Pipe Elbow

Butt Weld Elbow – Adjusting the Flow Direction Of Fluid In Piping Systems

Butt weld elbow is a commonly used fitting in piping systems. It has a curved shape and can bend the pipe in a horizontal or vertical direction. It is connected to the pipe through welding, allowing the fluid or gas to flow along a specific path. It can be used to avoid obstacles, pass through walls or floors, and adapt to different spatial limitations and engineering requirements, achieving flexibility in pipe layout and optimizing the design of the piping system.

The butt weld elbow is designed to change the direction of the fluid in the piping system. It has a long radius (LR) and a short radius (SR) type, and has different degrees of coverage to: 30degrees, 45 degrees, 60 degrees, 90 degrees, and 180 degrees.

Click here to differentiate the long radius elbow and sthe hort radius elbow.

Click here to difference the 45 degree elbow vs. 90 degree elbow.

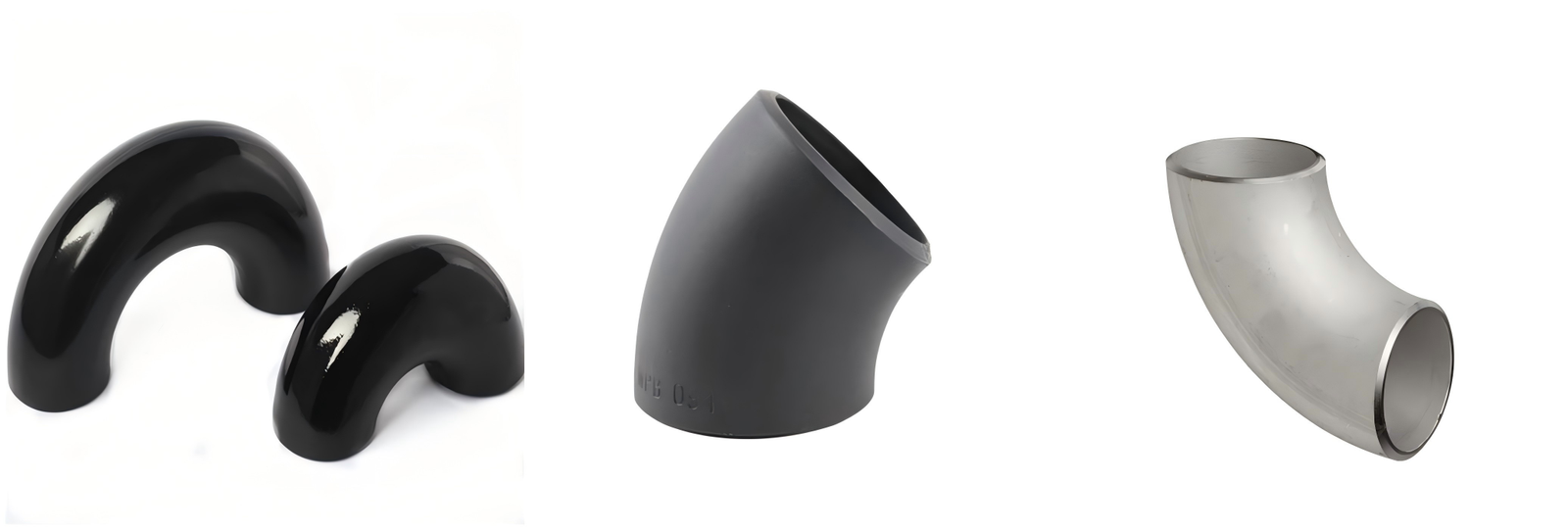

Types of  buttweld steel elbows

For example a description like:
Elbow, BW, 45 Degree, LR, NPS 6, SCH 40. Means the elbow in butt weld type, angle in 45 degree, length long radius (1.5 x diameter), thickness in Schedule 40.
A description like:
Elbow, BW, 90 Degree, SR, NPS 8, SCH80. Means butt weld elbow, fluid direction 90 degree, length in short radius (1 x diameter).

More than 90 degrees of elbow, we call it a steel bend. Like LR / SR 180 degree bend.

The material of the buttweld steel pipe elbow:

Carbon Steel: ASTM A234WPB, ASTM A234WPC, ASTM A420, STEEL 20#, Q235,

Stainless Steel:  ASTM 304/304L, ASTM 316/316L

Alloy Steel: Q345, 16Mn, 15CrMoG, 12Cr1MoVG, P11, P12, etc

Thickness: Sch 5s, Sch 10s, Sch 20s, Sch 40, STD, Sch 80, XS, Sch 120, Sch160

Click here to know carbon steel elbow vs stainless steel elbow.

Buttweld steel elbow fittings Primary standards:

The buttweld elbow main standard is ASME B16.9, which covers the dimensions, ratings, and tolerances for factory-made wrought buttwelding fittings. Other key standards include ASME B16.25 for the beveled ends of components and ASTM standards (like ASTM A234) for the material’s composition and properties. International standards like DIN/EN and JIS are also widely used.

ASME B16.9: The foundational standard for factory-made wrought buttwelding fittings, including elbows. It specifies overall dimensions, tolerances, pressure-temperature ratings, testing, and marking.
ASME B16.25: This standard specifically covers the preparation of buttwelding ends, including the required beveling for proper welding.
ASTM Standards: These standards define the material properties.
ASTM A234: Covers wrought carbon and alloy steel fittings for moderate and high-temperature service.

International standards

DIN/EN: European standards recognized in many international markets.
JIS: Japanese Industrial Standards, such as JIS B2311, are relevant for projects involving Japan.

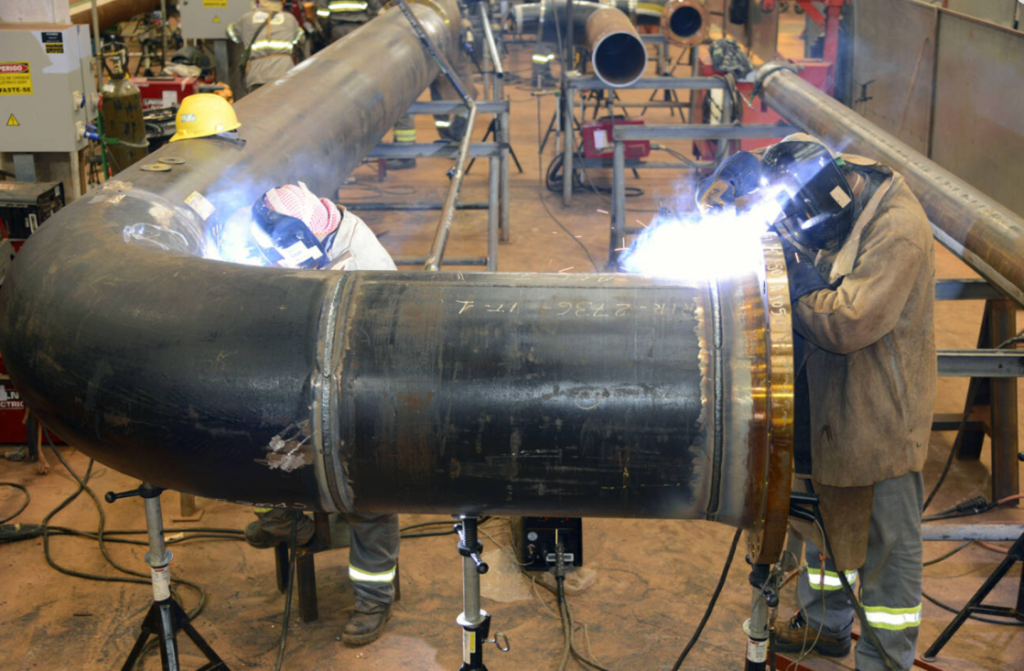

Buttweld Elbow Key applications by industry

Buttweld elbows are essential for piping systems in several industries.

1. In the oil and gas industry, they are used in various operations to transport crude oil, natural gas, and refined products.
2. The chemical processing sector relies on them for creating complex piping networks that handle diverse chemicals, often in corrosive environments.
3. In power generation, these elbows are vital for steam lines and cooling water systems.
4. They are also utilized in water treatment for filtration and distribution systems to effectively manage water flow.
5. Additionally, in plumbing and HVAC systems, they are used in commercial and residential buildings for directing water flow and for air ducting.

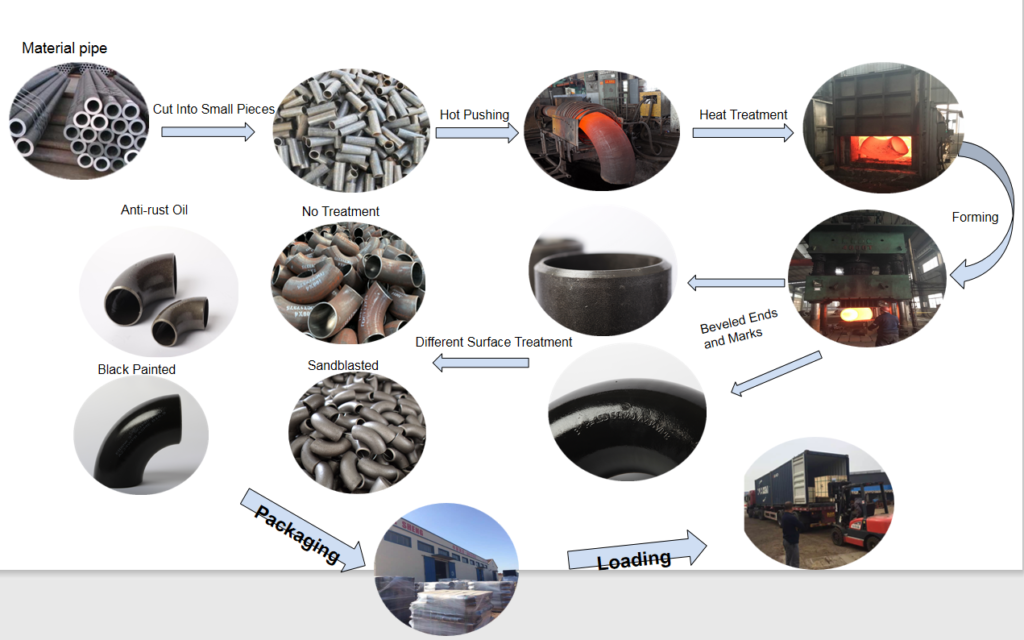

Welcome to RAYOUNG-Your Trusted Carbon Steel Pipe Fittings Supplier

We provide diverse industrial pipe fittings, including buttweld carbon steel pipe elbow,tee,reducers and pipe flanges, which ensure secure connection points. Our product lineup includes solutions for all design requirements ranging from straight lines through complex angles to flexible joints.

• Smooth internal surfaces
• Clean finishes
• Certified strength and performance

Standards Complied With:
ASME B16.9, ASME B16.28, ASME B16.49, GOST 17375, GOST 30753-2001, GOST 17376, GOST 17378, GOST 17379 and EN 10253. Production of every fitting follows precise manufacturing processes to achieve leak-proof connections while strengthening durability and performance stability with high-pressure systems.
