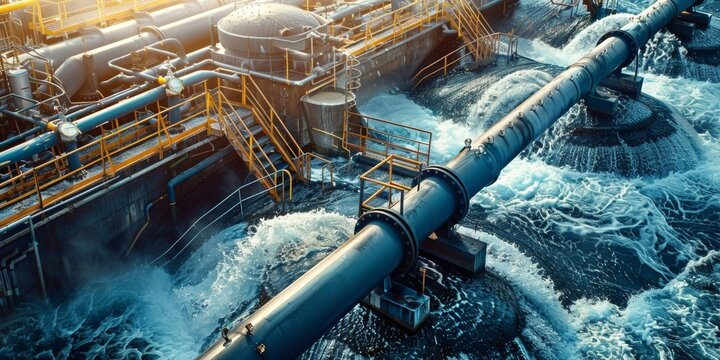

The infrastructure of modern water and wastewater treatment (W/WWT) plants relies on the integrity of their piping systems. Unlike standard commercial plumbing, W/WWT environments are punishing—subjecting components to corrosive chemicals, abrasive slurries, and fluctuating pressures. Choosing the right steel pipe fittings and flanges is not just a matter of compatibility; it is a critical decision for operational safety and long-term cost management.
Water/Wastewater Treatment: How to Choose Steel Pipe Fittings and Flanges?
Selecting components for water systems requires a balance between material longevity and project budget. The choice typically boils down to three primary factors:
Corrosion Resistance and Material Grade
Stainless Steel (304/316L): The gold standard for treated water and chemical dosing lines. 316L is preferred for its superior resistance to chlorides and acidic environments found in sludge treatment.
Carbon Steel with Specialized Coatings: For large-diameter raw water mains, carbon steel is cost-effective. However, it must be protected by internal linings (like liquid epoxy or cement mortar) and external coatings (such as Fusion Bonded Epoxy – FBE) to prevent oxidation.
Fluid Chemistry and Media
Are you transporting raw sewage, potable water, or industrial effluent? Raw sewage contains hydrogen sulfide (H₂S), which can lead to rapid microbial-induced corrosion. In these cases, high-nickel alloys or heavy-duty galvanized fittings are essential.
Pressure and Temperature Ratings

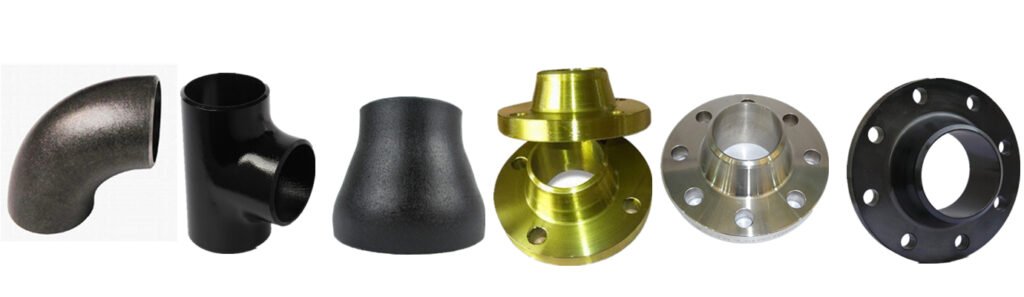

Wastewater systems often experience “water hammer” or pressure surges. Ensure your fittings (Elbows, Tees, Reducers) are rated for the maximum surge pressure, not just the steady-state operating pressure.
Steel Pipe Fitting and Flange Standards in the Water/Wastewater Treatment Industry
To ensure interchangeability and safety, W/WWT projects must adhere to strict international standards. At HB Steel, we emphasize compliance with the following:
AWWA Standards (American Water Works Association):
AWWA C207: This is the most critical standard for steel pipe flanges used in waterworks service. Unlike ASME flanges, AWWA C207 flanges are specifically designed for lower pressure (typically under 300 psi) but larger diameters.
AWWA C110/C153: Covers ductile iron and gray iron fittings, but often serves as a benchmark for steel alternatives in similar applications.
ASME/ANSI Standards:
ASME B16.9: For factory-made wrought butt-welding fittings.
ASME B16.5: For pipe flanges and flanged fittings (Class 150 to 2500). Used primarily in high-pressure pumping stations within the plant.
ASTM Specifications:
ASTM A234 WPB: The standard for carbon steel fittings for moderate and high-temperature service.
ASTM A182: The standard for forged or rolled alloy and stainless steel pipe flanges and fittings.
Water/Wastewater Treatment: How to Use or Order Steel Pipe Fittings and Flanges?
Ordering for a large-scale water project requires precision to avoid costly onsite delays. Follow this technical checklist when placing an order:
Specify the End Connection: Clearly state whether you require Butt-weld (BW), Socket-weld (SW), or Threaded (NPT) ends. For large-diameter municipal lines, Butt-weld is the industry standard for leak prevention.
Define the Wall Thickness (Schedule): Don’t just say “standard.” Specify Schedule 10s, 40s, or 80. In wastewater, a thicker wall (Schedule 80) is often used for abrasive sludge lines to extend the wear life.
Flange Face Selection: For water applications, Flat Face (FF) flanges are common when connecting to cast iron pumps or valves to prevent cracking the flange. Raised Face (RF) is used for steel-to-steel high-pressure connections.
Request Certification: Always demand the Mill Test Certificate (MTC). This ensures the chemical composition (Chromium, Nickel, Carbon content) matches the project specifications.
Partnering with a Specialist Steel Pipe Fitting and Flange Supplier
The complexity of water treatment infrastructure requires more than just a vendor; it requires a technical partner.
As a dedicated steel pipe fitting and flange supplier, Henan Huabao Iron and Steel (HB Steel) understands the nuances of municipal and industrial water projects. We provide:
Material Diversity: From standard A105 carbon steel flanges to specialized 316L stainless steel elbows.
Custom Coating Services: We offer internal and external epoxy coatings that meet AWWA standards for corrosion protection.
Global Logistics Experience: We understand the packaging requirements to prevent flange face damage during international transit.
Whether you are upgrading a municipal desalination plant or constructing a new industrial effluent system, the quality of your connections determines the success of your flow system.
