In large-scale industrial piping systems, standard ASME B16.5 flanges (up to 24″) often fall short. For projects requiring piping from 26″ to 60″, the ASME B16.47 standard is the global benchmark. Whether you are managing a massive petrochemical expansion or a municipal water treatment facility, selecting the right large-diameter flange is critical for system integrity and cost-efficiency.
As a leading manufacturer, RAYOUNG provides high-precision ASME B16.47 flanges tailored for high-pressure and high-temperature environments. This guide breaks down everything a B2B distributor or procurement manager needs to know.

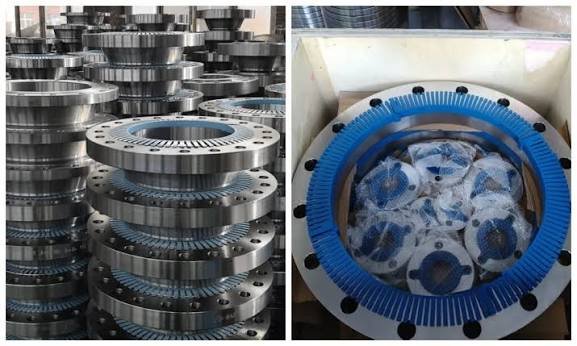

1. What is ASME B16.47?
The ASME B16.47 standard covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60.
Unlike smaller flanges, ASME B16.47 is divided into two distinct series:
- Series A (formerly MSS SP-44): Known for being thicker, heavier, and having larger bolt circles.
- Series B (formerly API 605): Designed with more, but smaller, bolts and a thinner profile, making it a more compact and often more economical choice for certain applications.
2. Series A vs. Series B: Key Differences for Distributors
For stockists and project managers, understanding the non-interchangeability of these two series is vital.
- Dimensional Differences: ASME B16.47 Series A flanges are significantly larger and heavier than Series B for the same pipe size and pressure rating.
- Bolting Requirements: ASME B16.47 Series B flange requires a higher quantity of smaller-diameter bolts and nuts, whereas Series A uses fewer but larger bolts.
- External Loading: Series A is generally preferred for applications involving high external structural loads or moments, while Series B is frequently used in pipeline refurbishments or where space/weight constraints exist.
- Price Point: Due to the material volume, Series B flanges are typically more cost-effective but may require specialized gaskets.

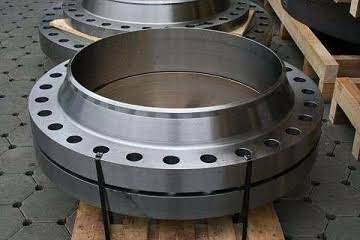

3. Pressure Classes and Facing Types
ASME B16.47 flanges are categorized into various pressure classes to meet diverse industrial demands:
- Class 75, 150, 300, 400, 600, 900 (Note: Series B does not include Class 75 or Class 900).
Facing Options:
- Raised Face (RF): The most common type for Class 150 and 300.
- Ring Type Joint (RTJ): Ideal for high-pressure (Class 600+) and high-temperature services where a metal-to-metal seal is required.
- Flat Face (FF): Commonly used in low-pressure water applications or when mating with cast iron equipment.
4. Material Grades: Durability Meets Performance
At RAYOUNG, we manufacture flanges in a wide spectrum of materials to ensure compliance with ASTM and ASME standards:
- Carbon Steel: ASTM A105, A350 LF2 (Low Temp), A694 (High Yield for pipelines).
- Stainless Steel: ASTM A182 F304/304L, F316/316L (For corrosion resistance).
- Alloy Steel: ASTM A182 F5, F11, F22 (For high-temperature service).
5. Why Precision Matters in Large Diameter Flanges
When dealing with 48″ or 60″ flanges, even a minor deviation in the bolt hole alignment or flange face flatness can lead to catastrophic leaks. Professional B2B buyers should look for:
- Strict Forging Processes: Ensuring grain flow follows the contour of the flange for maximum strength.
- Heat Treatment: Essential for normalizing the molecular structure after forging.
- Certification: All shipments must be accompanied by EN 10204 3.1 Mill Test Reports (MTRs).
6. Applications Across Industries
ASME B16.47 flanges are the backbone of:
- Oil & Gas Midstream: High-pressure transmission pipelines.
- Power Generation: Steam lines and cooling water systems.
- Chemical Processing: Large-scale reactors and storage tank connections.
- Marine & Offshore: Heavy-duty piping on FPSOs and platforms.
7. FAQ
Q: What is the pressure rating for ANSI/ASME B16.47?
A: ASME B16.47 covers large-diameter flanges from NPS 26 through 60 and includes pressure classes 75, 150, 300, 400, 600, and 900. Final allowable pressure depends on the selected material group and operating temperature, so always confirm using the B16.47 pressure-temperature rating tables.
Q: What does ANSI/ASME Class 300 mean in piping?
A: For 26″ to 60″ flanges, ANSI/ASME Class 300 refers to a flange class used in piping systems. For example, a 26″ to 60″ Class 300 flange made from ASTM A105 carbon steel is typically rated for about 740 psi at 100°F, though the actual pressure rating decreases as temperature increases.
Q: How do Class 150 and Class 300 flanges differ?
A: Class 150 flanges are engineered for moderate pressure and temperature applications, while Class 300 flanges are built for more demanding service. Because Class 300 flanges require different dimensions and bolt patterns, they are not interchangeable with Class 150 components; these differences are critical for ensuring a reliable seal in high-stress industrial applications.
Q: Are Class 300 flanges compatible with Class 150 flanges?
A: No.
Class 300 flanges are not interchangeable with Class 150 flanges because the bolt circle diameter, bolt quantity, and thickness are different.
Q: How to order ANSI/ASME B16.47 Class 300 flanges from RAYOUNG/JS FITTINGS?
A: Contact our experienced sales team, and we will help you select the right flange for your application. You can also explore our full range of ANSI and ASME flanges in our online product catalog, or contact us for custom flange options designed to meet your project specifications. Get connected with a dedicated sales representative today, or email us : info@hb-steel.com
Conclusion: Partner with a Trusted Manufacturer
Navigating the complexities of ASME B16.47 Series A and B requires technical expertise and a robust supply chain. For distributors looking to maintain a competitive edge, sourcing from a manufacturer that understands both technical precision and international logistics is key.
