Carbon Steel Buttweld Pipe Elbow

Butt Weld Elbow – Adjusting the Flow Direction Of Fluid In Piping Systems

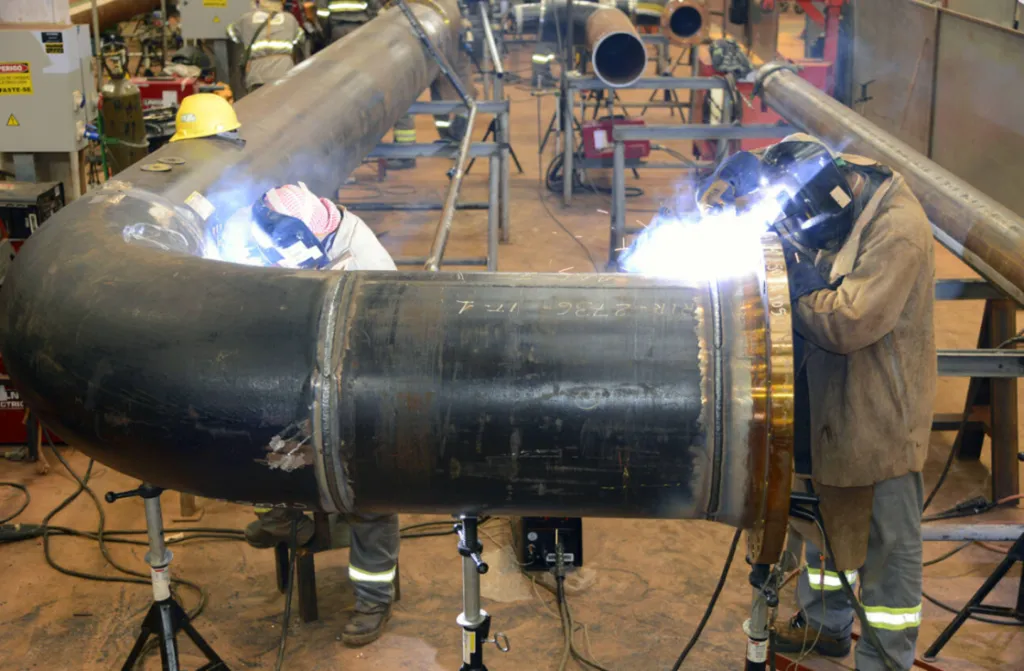

Butt weld elbow is a commonly used fitting in piping systems. It has a curved shape and can bend the pipe in a horizontal or vertical direction. It is connected to the pipe through welding, allowing the fluid or gas to flow along a specific path. It can be used to avoid obstacles, pass through walls or floors, and adapt to different spatial limitations and engineering requirements, achieving flexibility in pipe layout and optimizing the design of the piping system.

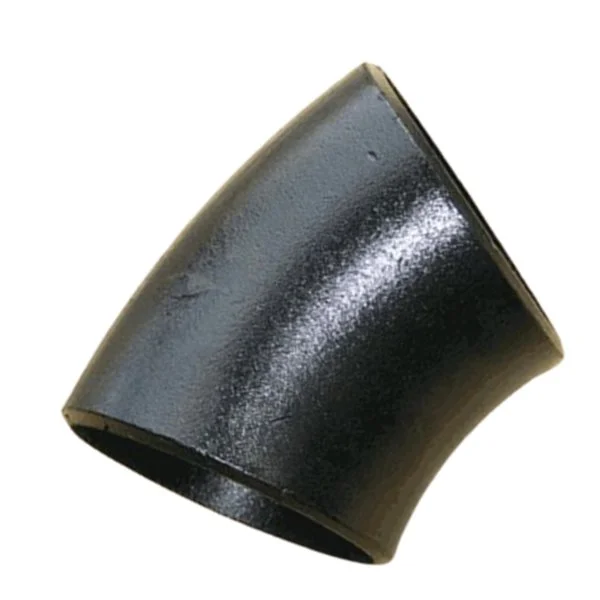

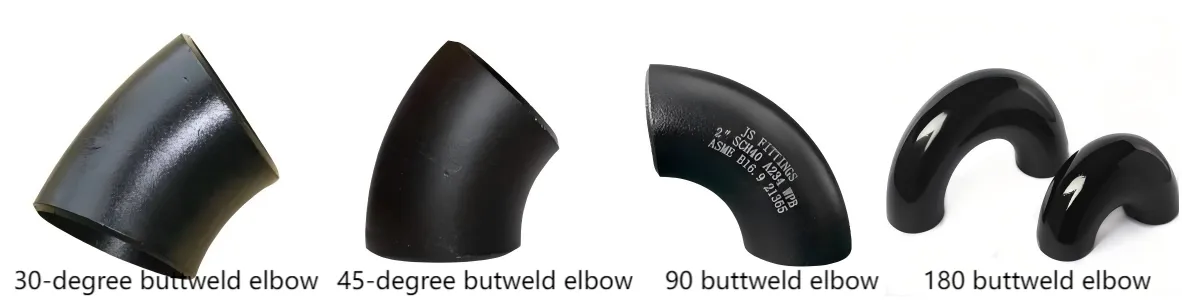

The butt weld elbow is designed to change the direction of the fluid in the piping system. It has a long radius (LR) and a short radius (SR) type, and has different degrees of coverage to: 30degrees, 45 degrees, 60 degrees, 90 degrees, and 180 degrees.

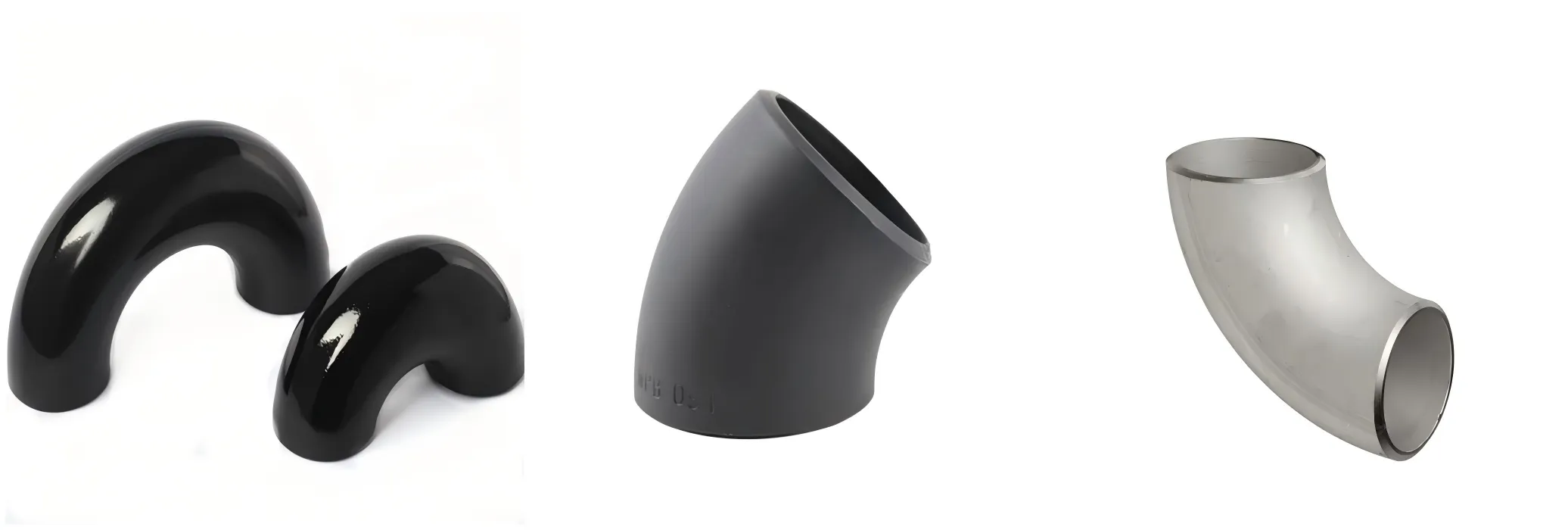

Types of  carbon steel buttweld pipe elbows

For example a description like:

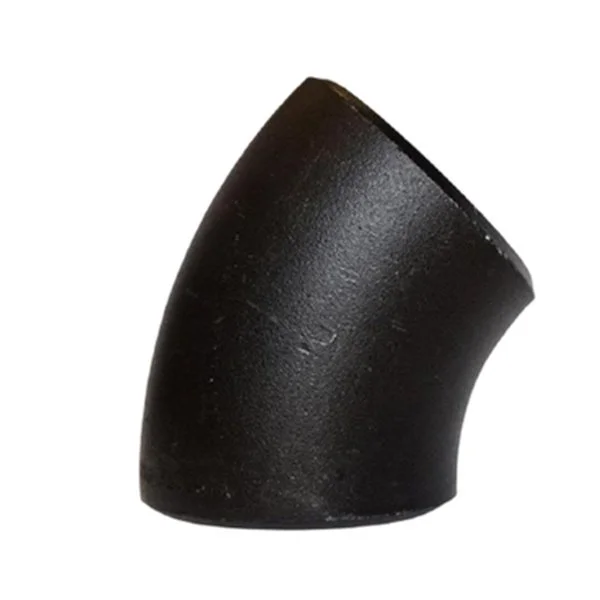

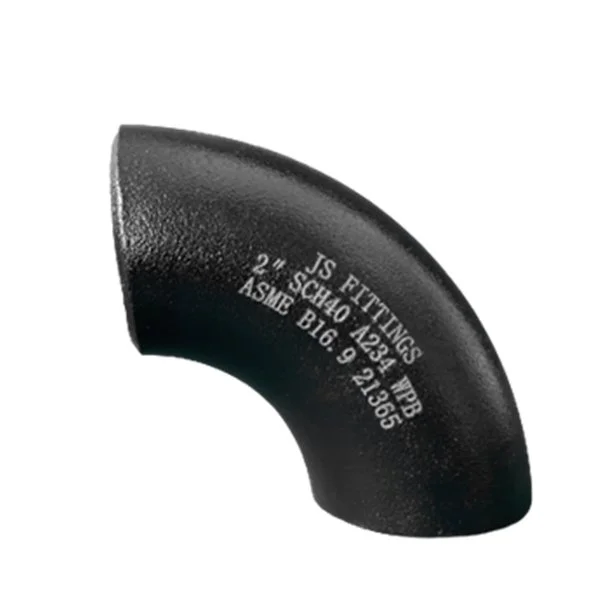

Elbow, BW, 45 Degree, LR, NPS 6, SCH 40. Means the elbow in butt weld type, angle in 45 degree, length long radius (1.5 x diameter), thickness in Schedule 40.
A description like:
Elbow, BW, 90 Degree, SR, NPS 8, SCH80. Means butt weld elbow, fluid direction 90 degree, length in short radius (1 x diameter).

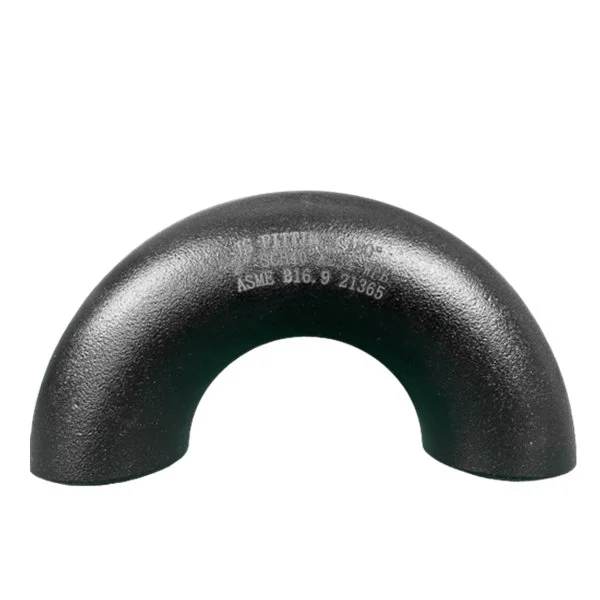

More than 90 degrees of elbow, we call it a steel bend. Like LR / SR 180 degree bend.

The material of the buttweld steel pipe elbow:

Carbon Steel: ASTM A234WPB, ASTM A234WPC, ASTM A420, STEEL 20#, Q235,

Stainless Steel:  ASTM 304/304L, ASTM 316/316L

Alloy Steel: Q345, 16Mn, 15CrMoG, 12Cr1MoVG, P11, P12, etc

Thickness: Sch 5s, Sch 10s, Sch 20s, Sch 40, STD, Sch 80, XS, Sch 120, Sch160

Size:

Seamless Elbow 1/2″-24″

Welded Elbow above 24″

Buttweld steel pipe elbow Production Process：

Welcome to RAYOUNG-Your Trusted Carbon Steel Pipe Fittings Supplier

We provide diverse industrial pipe fittings, including buttweld carbon steel pipe elbow,tee,reducers and pipe flanges, which ensure secure connection points. Our product lineup includes solutions for all design requirements ranging from straight lines through complex angles to flexible joints.

• Smooth internal surfaces
• Clean finishes
• Certified strength and performance

Standards Complied With:
ASME B16.9, ASME B16.28, ASME B16.49, GOST 17375, GOST 30753-2001, GOST 17376, GOST 17378, GOST 17379 and EN 10253. Production of every fitting follows precise manufacturing processes to achieve leak-proof connections while strengthening durability and performance stability with high-pressure systems.
