When browsing for carbon steel flanges, you’ll often see ‘ASTM A105 Flange’ and ‘ASTM A105N Flange’. What’s the difference?
The short answer: The ‘N’ stands for Normalized. While both share the same chemical DNA, ASTM A105N undergoes a specific heat treatment process that makes it tougher, more ductile, and better suited for critical, high-pressure environments. At HB Steel, we specialize in supplying precision-forged A105N flanges that meet the strictest global standards.”
What is the “N” (Normalization) anyway?
“Standard ASTM A105 has no heat treatment requirements unless it’s for specific pressure/temperature ratings. However, ASTM A105N is always normalized.
How it works: We heat the flange above its critical temperature (typically 870°C to 980°C) and then cool it in still air.
The Result:
Refined grain structure.
Improved impact strength at lower temperatures.
Elimination of internal stresses from the forging process.
Higher reliability in volatile environments.
| Property | ASTM A105 Flanges | ASTM A105N Flanges |
| Heat Treatment | Optional / Not Required | Mandatory Normalizing |
| Grain Structure | Coarse / Uneven | Fine & Uniform |
| Low Temp Toughness | Moderate | Superior |
| Common Use | General Piping | High-Pressure & Critical Service |
| Standard | ASME B16.5, B16.47 | ASME B16.5, B16.47 |

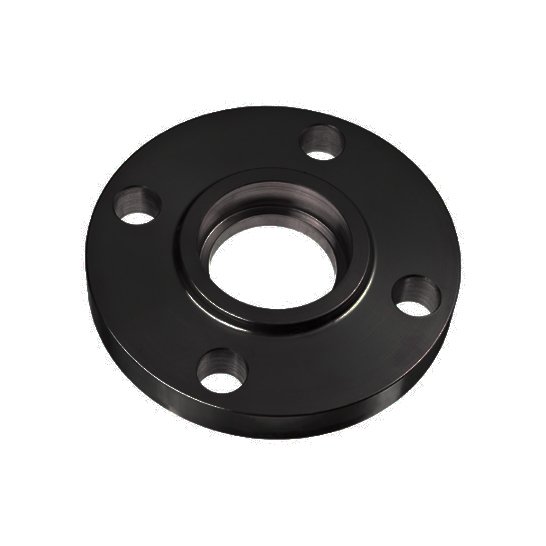

Carbon Steel A105/A105N Flanges Types:
There are several types of Carbon Steel A105 Flanges, each designed for specific applications. Here are the most common types:
- Weld Neck Flanges: These flanges are designed for high-pressure applications and are attached to the pipe by welding. Their tapered hub provides reinforcement and prevents distortion under heavy loads.
- Slip-On Flanges: Slip-On Flanges are easy to install and work well for low-pressure applications. They slide over the pipe and then require welding in place.
- Blind Flanges: Blind Flanges close the end of a pipe or valve. These flange requirements arise during maintenance. Additionally, they also work as manhole covers for the vessel in use.
- Socket Weld Flanges: These flanges have a socket that fits over the pipe and require welding to keep it in place. The flange design allows them to withstand high-pressure industrial applications. They are well-suited only for smaller-diameter pipes.
- Threaded Flanges: Threaded Flanges have threads on the inner surface, allowing them to screw onto the pipe. Do you know that there are two types of threads in this flange? One is male and female threads. These threads are responsible for the pipe connection strength.
Applications of Carbon Steel A105/A105N Flanges
Carbon Steel A105/A105N Flanges have applications in various industries due to their versatility and strength.
Some common applications include
- Oil and Gas Industry: A105 Flanges are useful in pipelines, refineries, and offshore drilling platforms for their strength and corrosion resistance.
- Petrochemical Industry: Flanges are helpful where resistance to corrosive substances is essential, especially in producing chemicals and the petrochemical industry.
- Power Generation: Carbon Steel A105 Flanges are the right fit for power plants, including nuclear and fossil fuel facilities, where high-temperature and high-pressure conditions are prevalent.
- Construction: These flanges are suitable for construction projects for their strength and durability.
Selecting the Right Carbon Steel A105/A105N Flange
- Pressure Rating: Determine the maximum pressure your system will experience and select a flange with an appropriate pressure rating.
- Flange Type: Choose the type of flange that suits your application, such as weld neck, slip-on, blind, socket weld, or threaded flanges.
- Size: Select the flange size that matches the pipe size in your system.
- Corrosion Resistance: Assess the environmental conditions where the flange will operate and consider coatings or linings to enhance corrosion resistance if necessary.
- Temperature: Consider the temperature range of your application and ensure the selected flange can withstand it.
- Standards and Specifications: Ensure the flange complies with relevant industry standards and specifications, such as ASTM A105.
Why Source A105N Flanges from Rayoung?
Not all A105N flanges are created equal. Many suppliers take shortcuts in the cooling process. At our factory, we ensure:
Strict Temperature Control: Our normalizing furnaces are calibrated to prevent overheating or under-cooling.
Precise Machining: Our CNC machines ensure the flange face (RF, FF, RTJ) meets exact tolerances for a leak-free seal.
Traceability: Every flange is stamped with the heat number and ‘A105N’ for full lifecycle tracking.
FAQ
Q: Can I use A105 instead of A105N?
A: It depends on your project’s pressure rating. For Class 300 and above, or for temperatures below -29°C, A105N is often mandatory.
Q: Is A105N considered stainless steel?
A: No, it is a carbon steel grade specifically designed for forged piping components.
Q: What flange types are available in A105N?
A: We can manufacture Slip-on, Weld Neck, Blind, Socket Weld, and Threaded flanges in A105N.
As suppliers of forged carbon steel flanges, we produce international standard flanges for low, medium, and high-pressure gas, water, and oil applications—capable of withstanding up to 4 tons per square inch (psi). We also offer customized dimensions built to endure extreme temperatures and harsh chemicals without fail.
Please contact us to get more carbon steel flange products.
