GOST Butt Weld Pipe Fittings
Standard Guidelines:
GOST 17375-2001: Covers carbon/alloy steel buttweld fittings.
GOST 30753-2001: Applies to stainless steel buttweld fittings.
GOST 12220-84: Specifies welded fittings designed for the oil and gas industries.
Types of Pipe Fittings:
Elbows (45°/90°/180°), equal/reducing tees, concentric/eccentric reducers, and caps.
Production Description
GOST Butt Weld Pipe Fittings are pipe fittings that are manufactured according to the GOST standards and are used to connect, redirect, and control the flow of fluids and gases within a piping system. These fittings are primarily designed for welding onto the pipe using a butt-welding process, ensuring a strong and leak-proof joint.
Key GOST Standards We Manufacture
We produce the full suite of “Seamless Steel Butt-Welding Fittings” according to the following critical GOST specifications:
GOST 17375-2001: Carbon and Low-alloy Steel Elbows (Standard radius).
GOST 30753-2001: Carbon and Low-alloy Steel Elbows (Short radius for tight spaces).

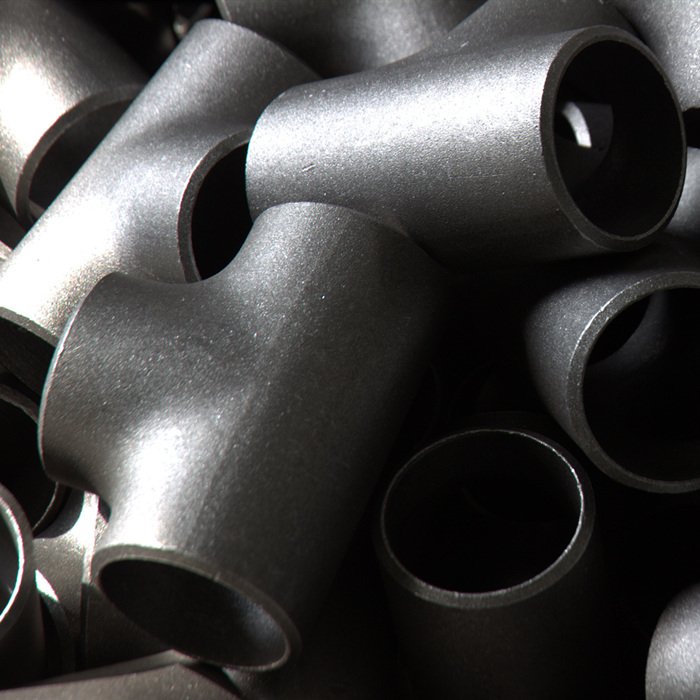

GOST 17376-2001: Steel Tees (Equal and Reducing).

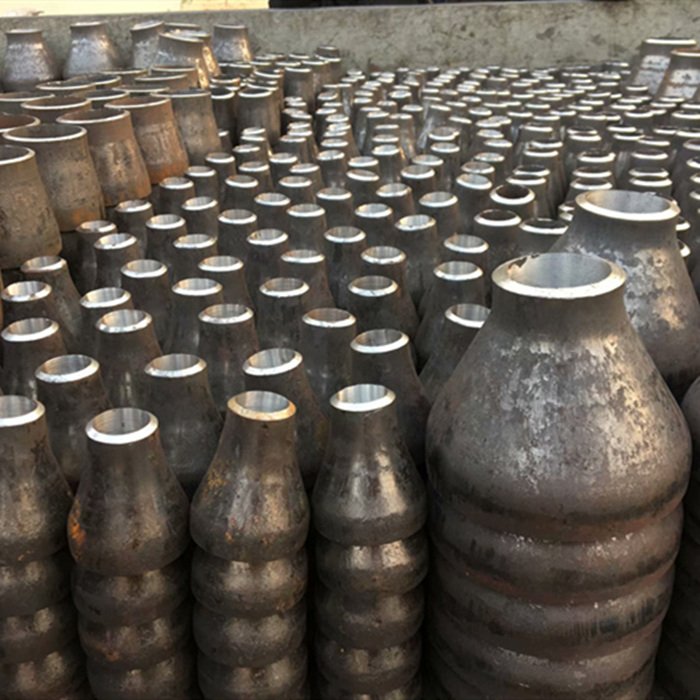

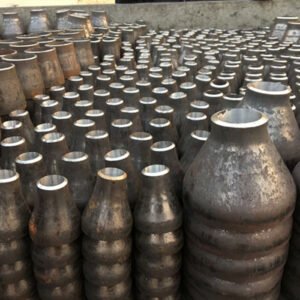

GOST 17378-2001: Steel Reducers (Concentric and Eccentric).

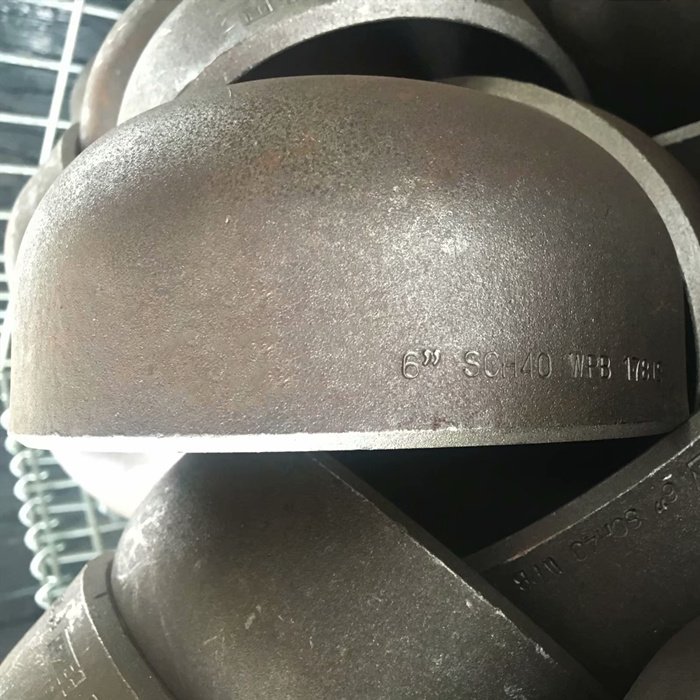

GOST 17379-2001: Steel Ellipsoidal Caps.
GOST 12820/12821: Steel Flanges (Plate and Weld Neck) for use with GOST fittings.
Common Types of GOST Butt Weld Pipe Fittings
Technical Parameters
| Feature | Technical Details |
| Size Range (DN) | DN 15 – DN 1200 (For larger sizes up to DN 1620, we offer welded fabricated versions) |
| Wall Thickness (S) | 2.0 mm up to 30.0 mm (Schedules defined by GOST 17380) |
| Pressure Rating (PN) | Up to 16 MPa (160 bar) depending on wall thickness and temperature |
| Surface Finish | Anti-corrosive black varnish, transparent oil, or hot-dip galvanizing |
| Edge Preparation | Beveled ends as per GOST 17380 for seamless welding transition |
Dimension Table for GOST 17375 Elbows
Standard 90-Degree Elbows (Type 3D / R ≈ 1.5D)
| Nominal Diameter (DN) | Outside Diameter (D) | Wall Thickness (T) | Center-to-End (F) | Approx Weight (kg) |
| DN 50 | 57.0 mm | 3.0 / 3.5 / 4.0 | 75 mm | 0.50 |
| DN 80 | 89.0 mm | 3.5 / 4.0 / 6.0 | 120 mm | 1.30 |
| DN 100 | 108.0 mm | 4.0 / 6.0 / 8.0 | 150 mm | 2.40 |
| DN 150 | 159.0 mm | 4.5 / 6.0 / 8.0 | 225 mm | 6.50 |
| DN 200 | 219.0 mm | 6.0 / 8.0 / 10.0 | 300 mm | 15.10 |
| DN 300 | 325.0 mm | 8.0 / 10.0 / 12.0 | 450 mm | 43.00 |
FAQ
Q: What is the difference between GOST 17375 and GOST 30753?
A: The main difference is the bend radius. GOST 17375 is Type 3D (R≈1.5D), which is the standard long radius. GOST 30753 is Type 2D (R≈1.0D), which is a short radius elbow used in confined spaces or specific vessel designs.
Q: Can you provide GOST fittings with “HL” (ХЛ) certification?
A: Yes, our 09G2S fittings are specifically processed to meet the HL (cold-resistant) category, suitable for deployment in Northern climatic zones.
RAYOUNG is a certified Chinese manufacturer specializing in the bulk production and export of GOST standard butt-weld fittings. We understand the specific technical rigors of the Russian and CIS industrial sectors—ranging from oil and gas extraction in Siberia to large-scale thermal power infrastructure.
Our GOST fittings are engineered to withstand the extreme temperature fluctuations and high-pressure requirements of the Eurasian energy sector. By integrating high-quality raw materials with precision hot-mandrel forming, we provide a reliable pipe fittings supply for large-volume stockists and EPC contractors.
If you are looking for a competitive, high-capacity factory in China to support your GOST 17375/17378/17376 requirements, RAYOUNG is your solution. Contact us today for a full weight chart and bulk pricing.
Cooperate with Rayoung, you will enjoy the following benefits.
Rayoung–A leading Butt Weld pipe fittings, flanges and steel pipes supplier& factory in China.
We’re here to help with your industry pipe fittings and flange needs. Rayoung has been in the business of industrial pipe fittings since 1983, and we’re confident we can help you find a solution more quickly, affordably, and with greater expertise than the competition.
We’d love to learn more about your project today!
