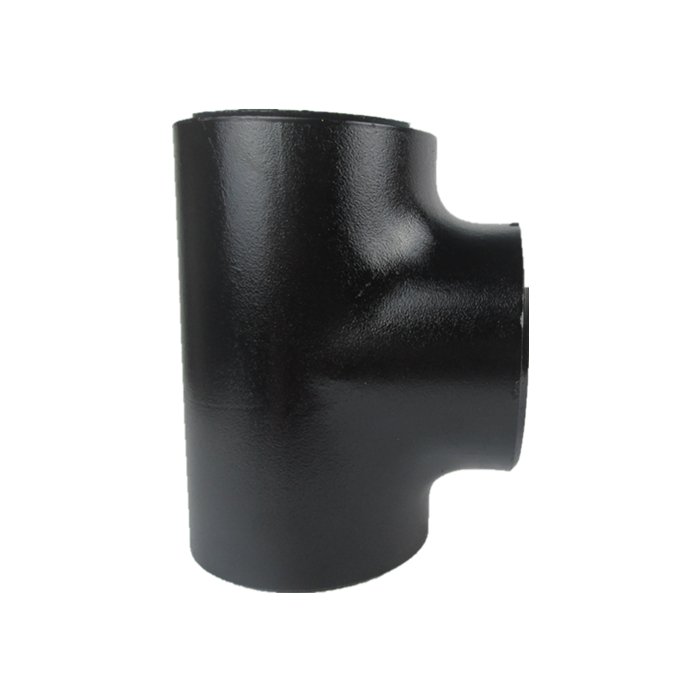

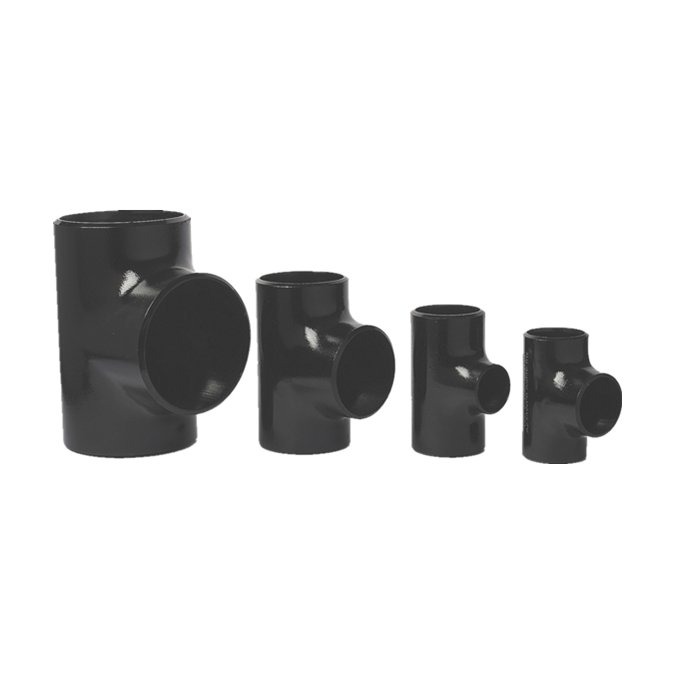

Buttweld Equal Tee
- It connects pipes of the same diameter.
- The branch direction of the pipe is perpendicular to the main pipe.
- The wall thickness range is SCH5S-XXS. For seamless tee fittings, the size range is 1/2”–24” (DN15–DN600), and for welded tee fittings, the size range is 1/2”–48” (DN15–DN1200).
- It is made of carbon steel, stainless steel, duplex steel, or special alloy steel.
Production Description
What Is a Buttweld Equal Tee?
A Buttweld Equal Tee is a type of pipe fitting used to divide or combine fluid flow in industrial piping systems. All three outlets of an equal tee have the same diameter, ensuring smooth and balanced flow distribution. This fitting is widely used in industries such as oil & gas, petrochemical, power generation, shipbuilding, water treatment, and mechanical engineering.
If your project requires precise flow management, durability, and secure welded connections, a buttweld equal tee is the ideal solution.
Buttweld equal tee fittings have the same diameter in all three ports, whereas reducing tees often have two branches with the same diameter and one branch with a different diameter.
Carbon Steel Equal Tee Material Grades: |
Stainless Steel Equal Tee Material Grades: |
| ASTM A234 WPB | ASTM A403 WP316/316L |
| ASTM A420 WPL6 | ASTM A403 WP304/304L |
| A860 WPHY42 | ASTM A182 F316L, 304L |
| ASTM A860 WPHY 52 | DIN 1.4301 |
| ASTM A860 WPHY 60 | DIN1.4306 |
| ASTM A860 WPHY 65 | DIN 1.4401 |
Available in Multiple Standards
We supply Buttweld Equal Tees in:
- ASME B16.9
- ASTM A234 WPB / WPC / WP11 / WP22
- ASTM A403 WP304 / WP316
- EN10253 / DIN2605 / JIS B2311
Buttweld Equal Tee Dimensions
| Nominal Pipe Size | Outside diameter at bevel |
Center-to-End | |
|---|---|---|---|
| Run (C) | Outlet(M) | ||
| 1/2″ | 21.3 | 25 | 25 |
| 3/4″ | 26.7 | 29 | 29 |
| 1″ | 33.4 | 38 | 38 |
| 1 1/4″ | 42.2 | 48 | 48 |
| 1 1/2″ | 48.3 | 57 | 57 |
| 2″ | 60.3 | 64 | 64 |
| 2 1/2″ | 73.0 | 76 | 76 |
| 3″ | 88.9 | 86 | 86 |
| 3 1/2″ | 101.6 | 95 | 95 |
| 4″ | 114.3 | 105 | 105 |
| 5″ | 141.3 | 124 | 124 |
| 6″ | 168.3 | 143 | 143 |
| 8″ | 219.1 | 178 | 178 |
| 10″ | 273.0 | 216 | 216 |
| 12″ | 323.8 | 254 | 254 |
| 14″ | 355.6 | 279 | 279 |
| 16″ | 406.4 | 305 | 305 |
| 18″ | 457.0 | 343 | 343 |
| 20″ | 508.0 | 381 | 381 |
| 22″ | 559.0 | 419 | 419 |
| 24″ | 610.0 | 432 | 432 |
The dimensions are in millimeters
Source : ASME B16.9 – 2007
Note: Seamless steel pipes can be processed into seamless pipe fittings, which do not require welding and have no welds. They have better sealing and pressure resistance, and are suitable for high-pressure, high-temperature, or systems with higher sealing requirements.
Generally, fittings made from steel plates are welded fittings, which are formed by joining and welding the edges of the steel plates. During the welding process, a weld seam is formed at the joint. This manufacturing process is relatively simple and suitable for general low-pressure piping systems.
Applications of Buttweld Equal Tee
Our Buttweld Equal Tees are commonly used in:
- Oil & Gas Pipelines
- Chemical Processing Plants
- Boiler & Pressure Vessel Systems
- Water Supply Systems
- Shipbuilding & Offshore Engineering
- Power Generation Plants
These buttweld tees ensure efficient flow distribution, making them vital components in both high-pressure and high-temperature environments.
Rayoung–A leading Butt Weld pipe fittings, carbon steel Butt Weld Reducer, butt weld elbow, butt weld tee, butt weld pipe elbow, butt weld cap & butt weld reducer manufacturer, exporter & wholesaler in China.
Why Choose Our Buttweld Equal Tee?
1. Strict Quality Control
2. Competitive Factory Pricing
3. Fast Delivery & Large Inventory
4. Customization Support
Ordering Information
When requesting a quote, please include:
Size (e.g., 6″, DN150)
Material (carbon steel, stainless steel, alloy)
Wall thickness (SCH40, SCH80, etc.)
Standard (ASME B16.9, EN10253…)
We usually respond within 1 hours with full pricing and delivery details.
