In the world of industrial piping, precision, reliability, and safety are non-negotiable. The ASME B16.9 standard serves as a cornerstone for ensuring these qualities in factory-made wrought buttweld fittings. As a leading manufacturer and supplier, Rayoung is committed to providing components that not only meet but also exceed these critical industry benchmarks.
This guide explores the essentials of the ASME B16.9 standard and what it means for your piping systems.
What is the ASME B16.9 Standard?
Published by the American Society of Mechanical Engineers (ASME), ASME B16.9 defines the dimensions, tolerances, ratings, testing methods, and markings for wrought buttwelding fittings. These buttweld fittings are fundamental components used to alter the direction, branch off, or change the diameter of a pipe in a system. The “buttweld” technique involves welding the fitting’s end directly to the pipe’s end, creating a robust, continuous, and leak-proof connection.
The standard covers factory-produced buttweld fittings from NPS 1/2 to NPS 48 (DN15 to DN1200), ensuring uniformity and interchangeability for industrial construction and piping projects worldwide.
Key Aspects of ASME B16.9 Compliant Fittings

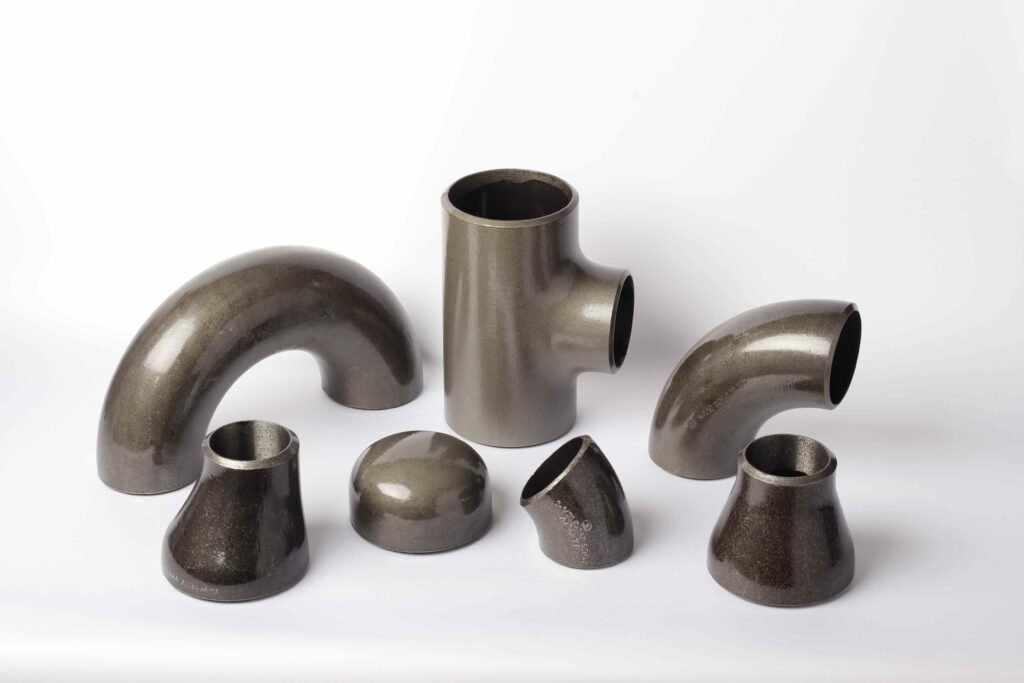

Comprehensive Range of Fitting Types:
- The standard encompasses all essential fittings required for complex piping layouts, including:
Elbows: To change the direction of flow.
Tees and Crosses: To create branches in the pipeline.
Reducers (Concentric & Eccentric reducer): To connect pipes of different sizes.
Caps: To seal the end of a pipe.
Lap Joint Stub Ends: Used with lap joint flanges for easy alignment.
Diverse Material Options:
- To accommodate various service conditions—from high temperatures to corrosive environments—ASME B16.9 fittings are available in a wide array of materials:
Carbon Steel (e.g., ASTM A234)
Stainless Steel (e.g., ASTM A403)
Alloy Steel (e.g., ASTM A234, ASTM A420 for low-temp service)
Non-Ferrous Metals: Including Aluminum (ASTM B361), Titanium (ASTM B363), and Nickel Alloys (ASTM B366).
Strict Dimensional Control
- ASME B16.9 provides precise specifications for the dimensions and tolerances of every fitting. This guarantees perfect alignment and seamless integration with connecting pipes, which is essential for maintaining the structural integrity and flow efficiency of the system.
- Established Pressure & Temperature Ratings:
Fittings are designed to meet specific pressure and temperature ratings, aligning with the flange designations of ASME B16.5 (Class 150, 300, 600, 900, 1500, and 2500). This ensures safe and dependable operation under demanding conditions. - Superior Manufacturing Processes:
The term “wrought” signifies that these fittings are manufactured from pipe, tubing, plates, or forgings. They can be produced as either seamless (from a single piece of material) or welded constructions. Both methods are engineered to deliver exceptional structural integrity and dimensional accuracy.
Widespread Industrial Applications
Thanks to their strength, leak-free performance, and smooth interior that minimizes flow resistance, buttweld fittings are the preferred choice across numerous industries:
Oil & Gas
Petrochemical and Chemical Processing
Power Generation
Water Treatment Facilities
And more…
Adherence to Codes and Referenced Standards
Compliance is key. A fitting used within a system governed by the ASME Boiler and Pressure Vessel Code (BPVC) or the ASME B31 Code for Pressure Piping must adhere to all limitations set by that code. This includes any regulations regarding material use at high or low temperatures. The B16.9 standard works in conjunction with other critical standards, such as ASME B16.25 (Buttwelding Ends) and various ASTM material specifications, to form a complete framework for quality and safety.
Rayoung: Your Premier Partner for Buttweld Fittings
Based in China, Rayoung stands as a leading manufacturer, exporter, and supplier of high-quality buttweld pipe fittings. We specialize in a vast range of materials, including carbon steel, stainless steel, alloy steel, cupro-nickel, and duplex stainless steel.
Our manufacturing capabilities cover the most common and specialized fittings, including elbows, tees, reducers, caps, and custom pipe bends. We offer these products in both seamless and welded forms (with 100% X-Ray/Radiography testing) to meet your project’s exact requirements.
Our Standard Supply Range Includes:
Standards: ASTM A234, MSS SP-75, ASTM A403, ASTM A420
Sizes: 1/2″ to 48″
Wall Thickness: SCH 10, SCH 40, SCH 80, and others available.
Surface Finishes: Black Painting, Varnish, Epoxy Coating, Galvanization.
Choosing the right fittings and ensuring they are installed correctly by qualified professionals is paramount to the integrity and safety of your entire piping system.
Connect with the experts at Rayoung today to discuss your requirements and source the highest quality ASME B16.9 buttweld fitting next project.
