When it comes to process piping systems, straight lines are often a rarity. With complex networks of turns, elevation changes, and fittings, it’s crucial to understand the role of pipe bends in your design or project. In this guide, we’ll explore the benefits of using bent pipes and highlight key considerations when seeking the perfect pipe bend.
Efficient Flow and Pressure Control Pipe bending allows systems to navigate through intricate paths while minimizing pressure changes. This ensures a smooth flow of materials throughout the piping network. The beauty of pipe bends lies in their compatibility with standard welding processes, flanges, and other connection methods. With minimal alterations to the ends of the piping, integrating pipe bends into a processing system becomes a straightforward task.
Versatile Solutions for Diverse Needs The versatility of pipe bends is truly remarkable. They come in a wide range of sizes and materials, making them suitable for various applications. Whether you’re dealing with hot or caustic liquids, high viscosity fluids, or even substances with suspended solids like Oil Sands slurry lines containing high concentrations of silica sand, there’s a pipe bend designed to meet your specific requirements.
By understanding the importance of pipe bends and considering the unique demands of your system, you can make informed decisions when purchasing these vital components. Stay tuned for more insights on measurement, materials, pipe bending methods, and fittings to help you buy with utmost confidence.
When the ideal length and sizing are utilized for your application, incorporating bent pipes and tubes can have a minimal impact on your design budget. This is due to the cost-efficient nature of most pipe bending methods.
COMMON PIPE BENDING METHODS AND THEIR ADVANTAGES
When it comes to pipe bending, there are two primary methods: cold bending and hot bending. Each method offers unique benefits and influences the degree of bending and final shape of the pipe.
COLD BENDING METHODS
- Rotary Draw Bending: This method involves using dies and components in a rotary action to draw the pipe or tube forward and achieve the desired bend. Mandrels can also be utilized for added support.
- Mandrel Bending: A mandrel is inserted inside the tube or pipe during bending to prevent defects like rippling, flattening, or collapse, especially with thinner wall materials.
- Compression Bending: In compression bending, a stationary die bends the pipe or tube while a counter die holds it in place.
- Roll Bending: This method is employed when large radius bends or curves are needed. The pipe or tube is passed through a series of three rollers arranged in a pyramid configuration to achieve the desired curve.
HOT BENDING OR INDUCTION BENDING Hot bending methods, primarily induction bending, involve precisely heating the pipe with an induction heating coil before applying pressure to create the desired bend. Compared to cold bending, hot bending requires less physical force and can produce bends with similar or higher quality, without the need for filler materials or mandrels.
Hot bending minimizes diameter reduction at the bend site but may cause changes in pipe thickness. The inner section of the bend (intrados) becomes thicker, while the outer section (extrados) becomes thinner. This method is commonly used for large diameter piping and tubing with long radius bends, but it can also be applied to smaller diameters and short radius bends.

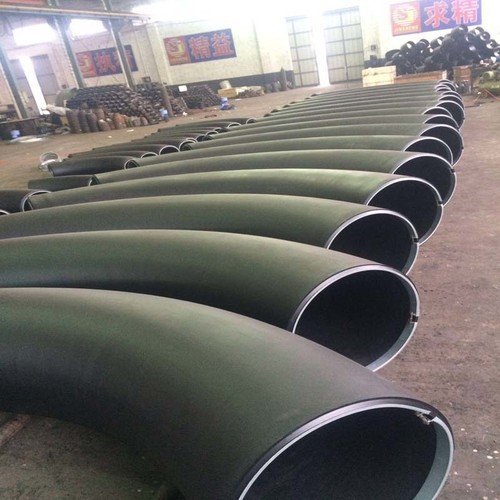

PIPE BEND SIZING AND FIT Pipe bends are typically measured based on the nominal pipe size or diameter (D). Long radius elbows have an end-to-center dimension equal to 1.5 times the diameter (>1.5D), while short radius elbows have an end-to-center dimension equal to the pipe diameter.
To determine the centerline radius of a bent pipe or tube, multiply the D designation by the diameter of the pipe. For example, a 5D pipe with a 10-inch diameter will have a centerline radius of 50 inches.
180-degree pipe bends are measured differently, using the center-to-center dimension to determine the required space and fit within the system. Short radius bends are 2D, while long radius bends are 3D. For instance, a 4-inch pipe with a short radius bend will have a distance of 8 inches between the centers, whereas a long radius bend will require a center-to-center dimension of 12 inches.
When it comes to fitting and sizing bent pipes, the tangent ends are often unaffected by the bending process and can be matched to existing piping based on diameter, flange, valve, or fitting requirements. Understanding these measurements makes it easier to integrate bent pipes into your system or design.
POPULAR MATERIALS FOR PIPE BENDING
The choice of materials for pipe bending greatly influences the bending methods that can be utilized. Induction bending, in particular, offers compatibility with a wide range of both ferrous and non-ferrous materials, including:
- Steel & Steel Alloy Pipes
- Stainless Steel Pipes
- Aluminum Pipes
- Copper Pipes
- Nickel Pipes
Induction bending is especially beneficial for thinner metals that may be prone to warping, pinching, collapsing, or distortion when subjected to cold bending methods.
FINAL THOUGHTS
When traditional 90-degree elbows don’t meet your system design or space requirements, bent pipes and tubing provide an excellent routing solution. By understanding different bending methods, materials, and common terminology associated with pipe bending, finding the perfect fit for pipes and spaces of all sizes becomes easier.
